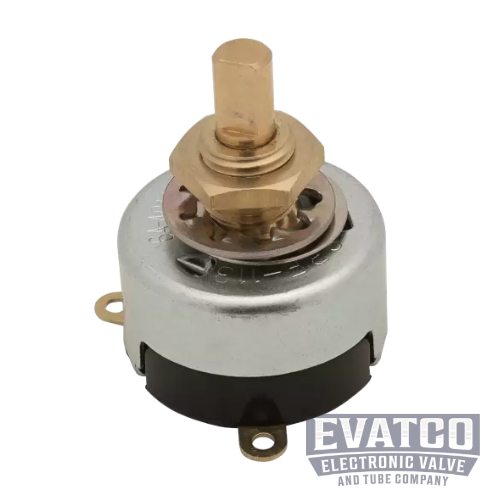

Impedence Selector Rotary Switch

** Please review specs and measurements before purchasing

High quality three position rotary switch commonly used as an impedance selector switch on tube amps. This rugged switch is rated for 6A at 125VAC and 3A at 250VAC. The flatted 6mm shaft can be used with the shaft adaptor sleve (included) for converting .125" shaft to 1/4" (6.35mm) shaft to easily fit standard 1/4" knobs

SP3T

Product Measurements by Type
Body Depth   20mm
Body Diameter   28mm
Bushing Length   10mm
Bushing Thread   M10 x 1
Dielectric strength   AC1500V 1 minute
Electrical life   5,000 cycles
Initial contact resistance   20mΩ Max. (DC2~4V 1A)
Insulation resistance   100MΩ Min. (DC500V)
Rating   AC125V 6A, AC250V 3A
Shaft Length   9.5mm
Step Angle   45°
SKU Nswsp3p
Brand Generic
Shipping Weight 0.0500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
